Filling Systems: Process and Capabilities of Modern Filling and Packaging Equipment

A wide range of liquid foods, beverages, and other products require bottling machines for packaging and storage in glass or plastic bottles. These products include juices, water, alcoholic beverages, dairy products, sauces, oils, and condiments. Additionally, cleaners and other chemicals often require filling and packaging processes. With the high demand for these products, manufacturers need efficient filling and packaging systems to keep up with market demands.
In this article, we'll provide a detailed look at the bottle filling process, how it works, and the capabilities of modern filling machines and bottling lines.

What Is Bottle Filling?

Bottle filling involves pouring liquid products into bottles of various shapes and sizes as part of the filling and packaging process. Specialized equipment, known as filling machines, fills these products based on specific volume and efficiency requirements, ensuring that bottling lines for liquid products remain productive and profitable.

Depending on the application, bottling machines can be fully automated, semi-automated, or manual to complete the filling process.

What Types of Bottles Can Be Used in the Filling Process?

There are two main types of bottles used in most filling and packaging applications: glass and plastic bottles. When selecting the appropriate material for the filling and packaging process, key factors must be considered.

Glass Bottles

Glass bottles are a popular choice due to their ability to maintain the freshness and flavor of liquid products, as well as their eco-friendly nature. Unlike plastic, glass is fully recyclable and doesn't degrade in quality during the recycling process. This makes it ideal for use in modern filling and bottling machines.
Moreover, glass is impermeable and nonporous, preventing any potential harmful exchanges between the product and its packaging. This makes it ideal for maintaining product integrity during the bottle filling process.

With the growing demand for sustainable packaging, glass bottles are becoming increasingly favored by manufacturers and consumers alike for bottling lines.

Plastic Bottles

While glass offers high sustainability, plastic remains highly versatile and widely used for automatic filling and packaging. Plastic allows for flexible design options and excellent printability. Among the most common materials is polyethylene terephthalate (PET), known for its strength, flexibility, and light weight. PET is non-toxic, fully recyclable, and used in a wide variety of products, including bottled water, soft drinks, fruit juices, and liquid foods. PET is widely used in modern bottling machines due to its compatibility with filling systems.
Innovations in plastic packaging, particularly PET, have made plastic more environmentally friendly, offering a balance between sustainability and functionality in filling machines and bottling lines.

How Do Filling Machines Work?

Filling machines are the core of any filling system. They are responsible for efficiently filling bottles of various types and sizes along the bottling line. Several factors must be considered when selecting the right filling machine, including:

• Liquid Viscosity: Ranging from thin liquids like water to thick sauces, the thickness of the liquid affects the choice of filling
• Fill Volume: Determining how much liquid needs to be filled per bottle is a crucial consideration in the filling and packaging
• Fill Rate: How many bottles need to be filled per minute, hour, or production cycle the fill rate is a crucial parameter when choosing the filling machine and effect the overall efficiency of the bottling line.

There are several types of filling machines available for bottling lines, including:

• Overflow Fillers: These machines fill bottles to a consistent level, ideal for thin liquids such as water and beverages, ensuring accurate filling level in every bottle.
• Gravity Fillers: These use timed filling based on the interior volume of the bottle, best suited for thin, foamy liquids.
• Piston Fillers: These offer fast and precise fill rates, making them versatile for thicker liquids like sauces and pastes. These dosers are essential in filling and packaging operations that require high accuracy.
• Pump Fillers: Suitable for a wide range of products with varying viscosities, these fillers use different types of pumps for accuracy and efficiency.

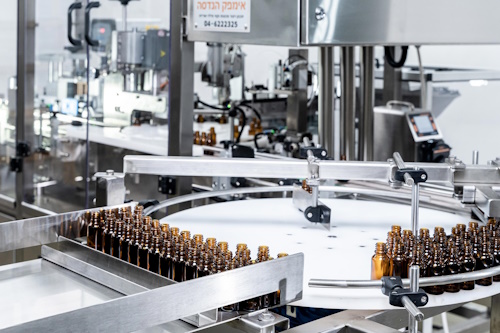

What Is a Bottling Line?

A bottling line consists of multiple machines working together to fill bottles efficiently. In addition to the filling machines, these lines may include:

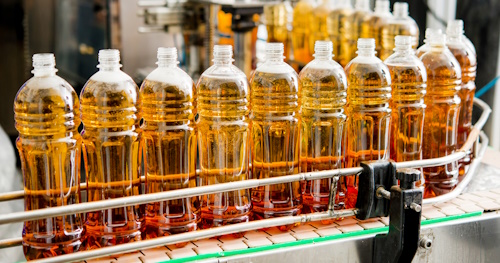

• Conveyor systems to transport bottles along the production line.
• Bottle washers to clean the containers before filling.
• Capping machines to seal the bottles.
• Labeling machines to apply labels to the bottles as part of the filling and packaging process.

Together, these machines form a complete and efficient bottling line.

How Many Bottles Can Be Filled in a Given Period?

The fill rate of a filling machine and the overall efficiency of a bottling line depend on various factors, such as the viscosity of the liquid, the size of the bottle, and the required production capacity. Smaller bottles fill faster than larger containers, and thin liquids like water flow more easily than thicker ones.
The type of equipment used, such as semi-automatic or fully automatic filling machines, also affects the speed and efficiency of the filling and packaging process. Fully automatic systems run consistently at high speeds, while semi-automatic machines depend on operator efficiency.

With the right filling and packaging equipment, manufacturers can create a reliable, efficient, and accurate bottling line tailored to meet their production needs.
